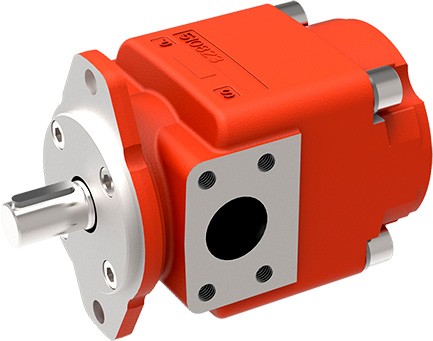

QX34-010R178 Bucher hydraulic internal gear pump 10.0 cm3 360 bar CW rotation

The BUCHER QX34-010R178 is part of the QX series internal gear pumps, designed for high-performance hydraulic applications. This series is known for its high efficiency, low noise levels, and long service life.

The QX34-010R178 ensures stable flow output and reliable operation under high-pressure conditions. It is suitable for various hydraulic fluids, including mineral oils, biodegradable fluids, and low-viscosity media.

QX pumps from Bucher have very high volumetric efficiency (up to 98%); low pressure pulsations; low noise level; extremely long service life and are ready to work with or without variable speed drivers.
Displacement: 10.0 cm3/rev.
Max working pressure (with mineral oil): 360 bar.
Rotation: Clockwise rotation (looking at the shaft end of the pump).
Bucher series: QX.
Pump size: 3.
Pressure range: 4.
Applications: QX pumps are used for any kind of hydraulic fluids and specially for transfer fluids like: fuels; biodegradable fluids and low viscosity fluids. QX pumps are certified ATEX 2; ABS; DNV; GL; LR; NK; … The internal gear pumps QX are suitable for applications in hazardous areas and complies with the following guidelines: ATEX directive 2014/34/EU; group II; equipment category 3; atmosphere G; temperature class T3 and T4.
